Nội dung kịch bản¶

Đầu vào monitor:

Nic của host (qua TICK, prometheus, zabbix,..)
Kết nối đến máy ảo. (vd ping đến máy đó)

Kịch bản: xuất hiện các alarm

Alarm 1: nic host mất kết nối : nic_operstate {host= compute01, interface = ens8}= 0
Alarm 2: Máy ảo mất kết nối (có thể do vitrage tự deduce ra, hoặc monitor tool phát hiện)

Yêu cầu:

Collect được alarm khi xảy ra
Vitrage nhân định Alarm 1 => Alarm 2
Vitrage gọi đến mistral thực hiện seft healing

Thực hiện¶

Chuẩn bị monitor các thành phần:¶

Ở đây cần nic của host. Lựa chọn TICK lấy alarm.

Đầu tiên cần thiết lập cho telegraf lấy được metric host nic down: ta tạo file

/usr/share/telegraf_check_nic.sh

#!/bin/sh
#nics=`find /sys/class/net ! -type d | xargs --max-args=2 realpath  | awk -F\/ '/pci/{print $NF}'`
nics=`ip link  | grep "up" | awk -F": " {'print $2'}  | grep ^e`
hostname=`hostname`
for nic in $nics
do
  operstate=`cat /sys/class/net/$nic/operstate`
  if [ "$operstate" = "up" ]
  then
     field=1
  else
     field=0
  fi
  echo "nic,host=${hostname},interface=${nic} operstate=${field}"
done

sửa trong file config của telegraf:

/etc/telegraf/telegraf.conf

[[inputs.exec]]
  ## Commands array
  commands = [
    "/usr/share/telegraf_check_nic.sh",
  ]
  timeout = "5s"
  data_format = "influx"

Như vậy , telegraf sẽ liên tục gửi về cho influxdb metric định dạng:

nic,host=compute01,interface=ens8 operstate= 0 nếu nic ens8 down
nic,host=compute01,interface=ens8 operstate= 1 nếu nic ens8 up
Tiếp theo cần thiết lập cảnh báo kapacitor: Tạo 1 tick script:

/etc/kapacitor/tick_script_nicdown.txt

dbrp "telegraf"."autogen"
var db = 'telegraf'
var rp = 'autogen'
var measurement = 'nic'
var groupBy = ['host', 'interface']
var whereFilter = lambda: TRUE
var name = 'nic down'
var idVar = name + '-{{.Group}}'
var message = ' {{ index .Tags "interface" }} down'
var idTag = 'alertID'
var levelTag = 'level'
var messageField = 'message'
var durationField = 'duration'
var outputMeasurement = 'alerts'
var triggerType = 'threshold'
var crit = 1
var data = stream
    |from()
        .database(db)
        .retentionPolicy(rp)
        .measurement(measurement)
        .groupBy(groupBy)
        .where(whereFilter)
    |eval(lambda: "operstate")
        .as('value')
var trigger = data
    |alert()
        .crit(lambda: "value" < crit)
        .message(message)
        .id(idVar)
        .idTag(idTag)
        .levelTag(levelTag)
        .messageField(messageField)
        .durationField(durationField)
        .stateChangesOnly()
        .exec('/usr/bin/python', '/etc/kapacitor/kapacitor_vitrage.py', 'rabbit://openstack:Welcome123@192.168.77.51')
trigger
    |httpOut('output')

Import tick_script trên cho kapacitor:

kapacitor define check_nic_down -tick /etc/kapacitor/tick_script_nicdown.txt
kapacitor endnable check_nic_down

Thực hiện cấu hình cho kapacitor trả về alarm được cho vitrage: https://docs.openstack.org/vitrage/latest/contributor/kapacitor-datasource.html
Kết quả sau khi đặt monitor nic xong: thử ip link down ens8:

Cấu hình vitrage¶

Thêm kịch bản để khi có alarm nic của host down sẽ xác định cho host nào bị ảnh hưởng.

scenario2-1.yaml

metadata:
    version: 2
    name: kapacitor host nic alarm to nic alarm
    type: standard
    description: kapacitor host nic alarm to nic alarm
definitions:
    entities:
        - entity:
            category: ALARM
            name.regex: (.ens8) down
            template_id: host_alarm
        - entity:
            category: RESOURCE
            type: host.nic
            template_id: nic
        - entity:
            category: RESOURCE
            type: nova.host
            template_id: host
    relationships:
        - relationship:
            source: host_alarm
            target: host
            relationship_type: on
            template_id : alarm_on_host

        - relationship:
            source: nic
            target: host
            relationship_type: attach
            template_id : nic_attach_host

scenarios:
    - scenario:
        condition: alarm_on_host and nic_attach_host
        actions:
            - action:
               action_type : raise_alarm
               properties:
                  alarm_name: down
                  severity: critical
               action_target:
                  target: nic

scenario2-2.yaml

metadata:
    version: 2
    name: nic down scenario
    type: standard
    description: nic down scenario
definitions:
    entities:
        - entity:
            category: ALARM
            name: down
            template_id: nic_alarm
        - entity:
            category: RESOURCE
            type: neutron.network
            template_id: net
        - entity:
            category: RESOURCE
            type: host.nic
            template_id: nic
        - entity:
            category: RESOURCE
            type: neutron.port
            template_id: port

        - entity:
            category: RESOURCE
            type: nova.instance
            template_id: instance

        - entity:
            category: RESOURCE
            type: nova.host
            template_id: host

        - entity:
            category: ALARM
            name: disconnect
            template_id: instance_alarm


    relationships:
        - relationship:
            source: nic_alarm
            target: nic
            relationship_type: on
            template_id : alarm_on_nic

        - relationship:
            source: nic
            target: net
            relationship_type: provide
            template_id : nic_provide_net

        - relationship:
            source: net
            target: port
            relationship_type: contains
            template_id : net_contains_port

        - relationship:
            source: port
            target: instance
            relationship_type: attached
            template_id : port_attached_instance

        - relationship:
            source: host
            target: instance
            relationship_type: contains
            template_id : host_contains_instance

        - relationship:
            source: nic
            target: host
            relationship_type: attach
            template_id : nic_attach_host

        - relationship:
            source: instance_alarm
            target: instance
            relationship_type: on
            template_id : alarm_on_instance



scenarios:
    - scenario:
        condition: alarm_on_nic and nic_provide_net and net_contains_port and port_attached_instance and host_contains_instance and nic_attach_host
        actions:
            - action:
               action_type : raise_alarm
               properties:
                  alarm_name: disconnect
                  severity: critical
               action_target:
                  target: instance
            - action:
               action_type : execute_mistral
               properties:
                  workflow: instance_live_migrate
                  input:
                    instance_id: get_attr(instance, id)
    - scenario:
        condition: alarm_on_nic and host_contains_instance and nic_attach_host and alarm_on_instance
        actions:
            - action:
               action_type : add_causal_relationship
               action_target:
                  source: nic_alarm
                  target: instance_alarm

Chạy lệnh:

$ vitrage template validate --type standard --path /etc/vitrage/templates/scenario2-1.yaml
$ vitrage template add --type standard --path /etc/vitrage/templates/scenario2-1.yaml
$ vitrage template validate --type standard --path /etc/vitrage/templates/scenario2-2.yaml
$ vitrage template add --type standard --path /etc/vitrage/templates/scenario2-2.yaml

Cấu hình mistral¶

Thêm workflow instance_live_migrate sau:

workflow_live_migrate.yaml

version: '2.0'
instance_live_migrate:
 type: direct
 input:
   - instance_id
   - notifi_to_email: admin-openstack@yopmail.com
 tasks:
   get_instance_status_before:
     action: nova.servers_get server=<% $.instance_id %>
     publish:
       instance_name: <% task(get_instance_status_before).result.name %>
       status_before: <% task(get_instance_status_before).result.status %>
       host_before: <% task(get_instance_status_before).result["OS-EXT-SRV-ATTR:host"] %>
     on-success: live_migrate_instance
     on-error: send_error_email

   live_migrate_instance:
      action: nova.servers_live_migrate
      input:
        server: <% $.instance_id %>
        block_migration: False
        disk_over_commit: False
        host:
      retry:
        count: 10
        delay: 30
      on-success: wait_for_instance_migrate
      on-error: send_error_email

   wait_for_instance_migrate:
     action: nova.servers_get server=<% $.instance_id %>
     retry:
       count: 30
       delay: 2
       continue-on: <% task(wait_for_instance_migrate).result.status !="MIGRATING" %>
     on-success: wait_instance_status_active

   wait_instance_status_active:
     action: nova.servers_get server=<% $.instance_id %>
     retry:
       delay: 10
       count: 30
       continue-on: <% task(wait_instance_status_active).result.status !="ACTIVE" %>
     on-success: get_instance_status_after

   get_instance_status_after:
     action: nova.servers_get server=<% $.instance_id %>
     publish:
       status_after: <% task(get_instance_status_after).result.status %>
       host_after: <% task(get_instance_status_after).result["OS-EXT-SRV-ATTR:host"] %>
     on-complete: check_diffrent_host
   check_diffrent_host:
     action: std.noop
     on-complete:
       - send_error_email: <% $.status_before != $.status_after or $.host_before = $.host_after %>

   send_error_email:
     action: std.email
     input:
       to_addrs: [<% $.notifi_to_email %>]
       subject: ERROR live migrate virtual machine
       body: |
        We try to migrate vm <% $.instance_id %> when host have problem
         Please look at mistral workflow <% execution().id %> for more detail
       from_addr: ngohoa211@gmail.com
       smtp_server: smtp.gmail.com
       smtp_password: secret

Kết quả¶

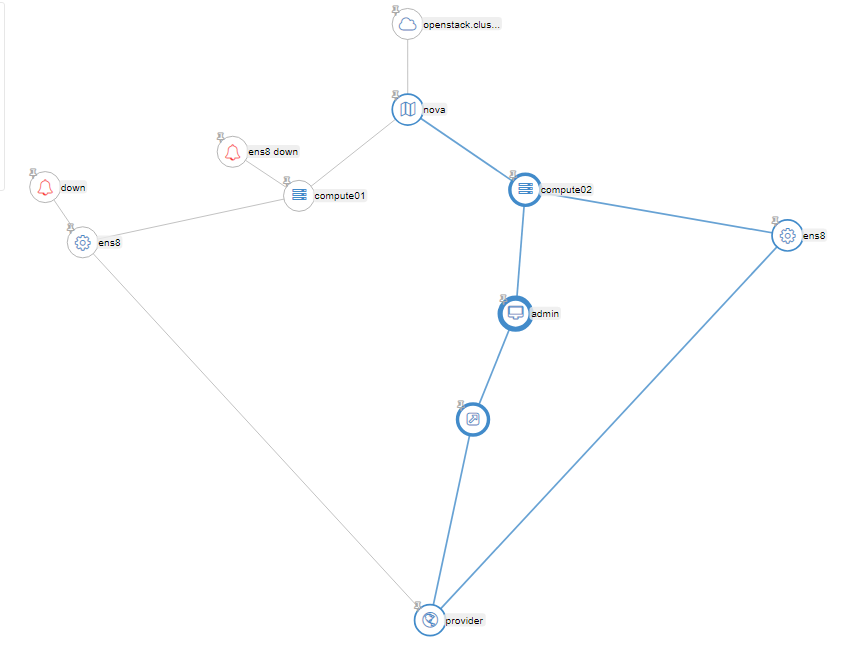

Khi tắt card mạng, đầu tiên, sẽ có vitrage deduce alarm trên máy báo hiệu máy ảo mất kết nối

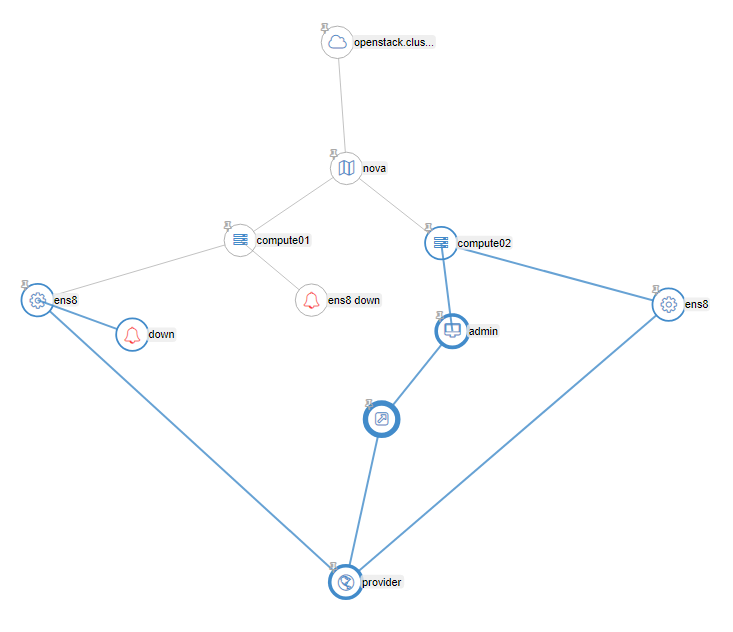

Sau đó, hệ thống tự động chuyển máy ảo sang host khác
